Creating a custom length RCA cable can be a rewarding project for audio enthusiasts, DIY hobbyists, or anyone looking to optimize their home entertainment setup. RCA cables, known for their versatility in connecting audio and video components, often come in standard lengths that may not suit every setup. By making your own, you can achieve the exact length needed, reduce clutter, and ensure high-quality signal transmission. This guide, brought to you by Accure Home, will walk you through the process step-by-step, ensuring a professional-grade result that meets your specific needs.
Why Make a Custom RCA Cable?
Standard RCA cables are available in fixed lengths, such as 3, 6, or 12 feet, which may not always fit your setup perfectly. A cable that’s too long can lead to clutter, signal degradation, or interference, while one that’s too short may not reach your devices. By crafting a custom length RCA cable, you can eliminate these issues, save money compared to premium pre-made cables, and tailor the cable to your exact specifications. For those running coaxial cables from outside, Accure Home’s guide on how to run coax cable from outside offers valuable insights into managing external cable installations safely and effectively.
Additionally, making your own RCA cable allows you to select high-quality materials, ensuring better durability and performance. Whether you’re connecting a turntable to an amplifier, a DVD player to a TV, or setting up a home theater system, a custom RCA cable can enhance your setup’s efficiency and aesthetics. This project requires basic tools, some technical know-how, and attention to detail, but it’s accessible even for beginners.
Materials and Tools Needed
Before starting, gather the necessary materials and tools to ensure a smooth process. Here’s what you’ll need:
- Coaxial cable: Choose a high-quality RG59 or RG6 coaxial cable, depending on your signal requirements. RG59 is suitable for shorter runs, while RG6 is better for longer distances due to lower signal loss.
- RCA connectors: Select male RCA plugs compatible with your cable type. Gold-plated connectors reduce corrosion and improve conductivity.
- Wire cutters/strippers: For cutting the cable to length and stripping insulation.
- Soldering iron and solder: To secure connections for optimal signal quality.
- Heat shrink tubing: To insulate and protect soldered connections.
- Multimeter: To test continuity and ensure proper connections.
- Electrical tape: For additional insulation, if needed.
- Measuring tape: To measure the exact cable length required.
- Utility knife: For precise cuts and stripping.
Ensure all materials are of good quality to avoid signal loss or interference. For instance, Parts Express is a reliable source for audio-grade coaxial cables and RCA connectors.
Step-by-Step Guide to Making a Custom RCA Cable
Step 1: Measure and Cut the Cable
Begin by measuring the distance between the devices you plan to connect. Use a measuring tape to determine the exact length, adding a few extra inches for flexibility and to account for any bends or curves in the cable path. Once measured, use wire cutters to cut the coaxial cable to the desired length. Ensure the cut is clean and straight to avoid damaging the inner conductor or shielding.
Step 2: Strip the Cable Ends
Using a wire stripper or utility knife, carefully strip about 1 inch of the outer jacket from both ends of the coaxial cable to expose the inner components. Coaxial cables typically consist of a center conductor, a dielectric insulator, a braided or foil shield, and an outer jacket. Strip about 1/4 inch of the dielectric insulator to expose the center conductor, taking care not to nick or cut it. Fold back or trim the braided shield to expose the inner layers, ensuring no stray wires touch the center conductor.
Step 3: Prepare the RCA Connectors

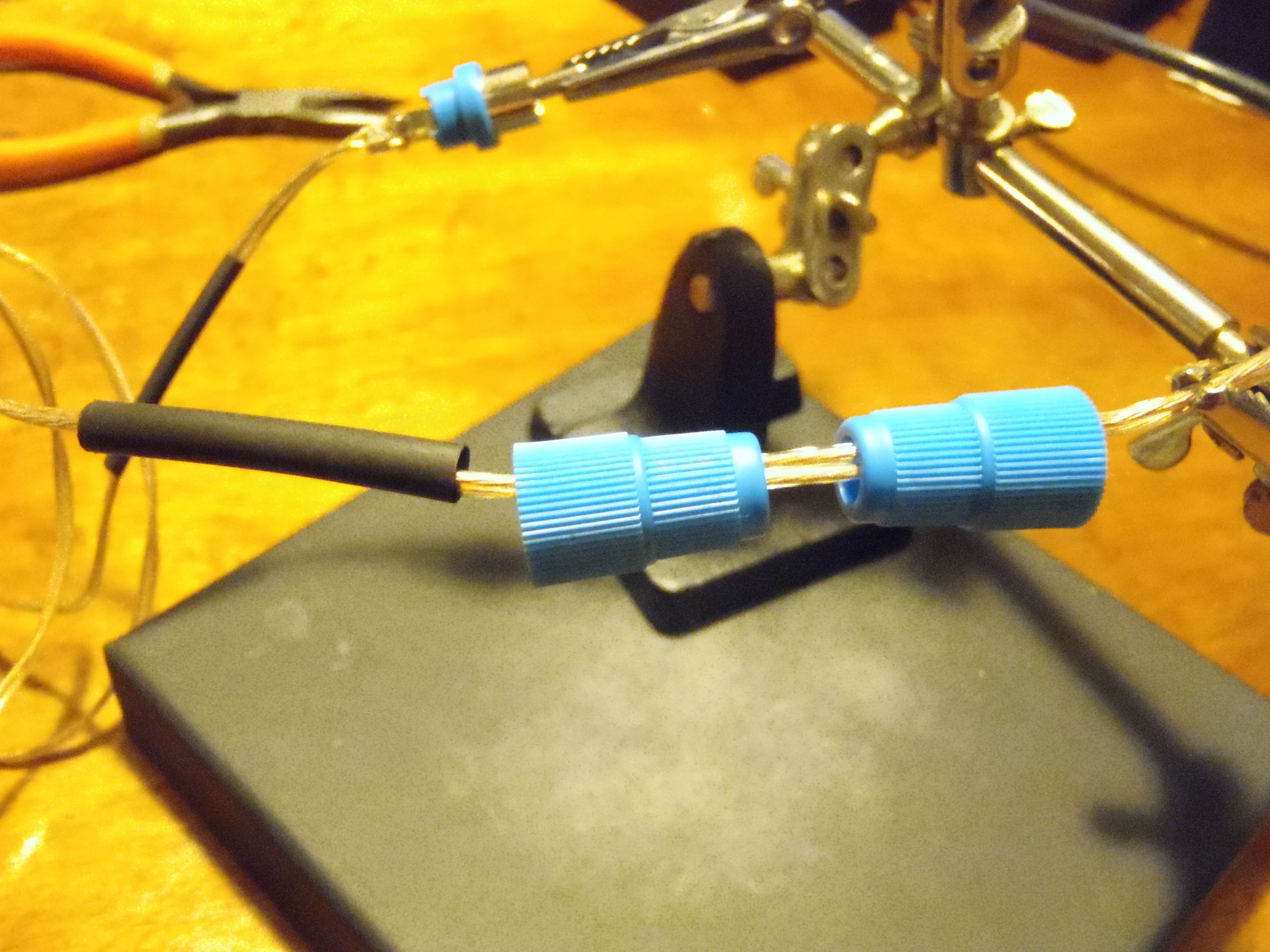

Take your RCA connectors and disassemble them to access the internal components. Most RCA plugs have a central pin for the signal (center conductor) and a sleeve or tabs for the ground (shield). Slide the connector’s outer shell or boot onto the cable before soldering, as it will need to be screwed back on later. If using heat shrink tubing, slide it onto the cable now, positioning it away from the soldering area.
Step 4: Solder the Connections
Heat your soldering iron to the appropriate temperature (around 350°C for most solder types). Attach the center conductor of the coaxial cable to the RCA connector’s central pin. Apply a small amount of solder to the pin, then touch the conductor to it, allowing the solder to flow and create a secure bond. Next, connect the braided shield to the connector’s ground tabs or sleeve. Ensure the connections are clean and free of excess solder to prevent short circuits. For detailed soldering tips, SparkFun offers an excellent guide.
Step 5: Insulate and Secure
Once soldered, slide the heat shrink tubing over the connections and apply heat using a heat gun or lighter to shrink it, creating a tight seal. This protects the connections from moisture and physical damage. If you don’t have heat shrink tubing, wrap the connections with electrical tape for insulation. Reassemble the RCA connector by screwing or snapping the outer shell back into place.
Step 6: Test the Cable
Use a multimeter to test the continuity of your cable. Set the multimeter to continuity mode and touch one probe to the center pin of one RCA connector and the other to the center pin of the opposite connector. A beep indicates a good connection. Repeat the test for the ground by touching the outer sleeves of both connectors. If there’s no continuity or a short circuit (beeping when touching the center pin and ground), recheck your soldering and connections.
Step 7: Install and Organize
Connect your custom RCA cable to your devices, ensuring a snug fit. Route the cable neatly to avoid tripping hazards or signal interference. If running the cable through walls or externally, ensure proper insulation and protection against environmental factors. Secure the cable with clips or ties for a clean setup.
Read Also:
Solar-Powered Water Purifiers for Off-Grid Living
Oklahoma City Roofing Materials: Top Choices for Durability
Tips for Success
- Choose the right cable type: RG6 is ideal for longer runs due to its lower signal loss, while RG59 works well for shorter distances.
- Practice soldering: If you’re new to soldering, practice on scrap wire to avoid damaging your cable.
- Avoid signal interference: Keep RCA cables away from power cords or electromagnetic sources to minimize noise.
- Double-check measurements: Measure twice to ensure the cable length is perfect for your setup.
- Label your cables: If making multiple cables, label them to avoid confusion during installation.
FAQs
How long can a custom RCA cable be without signal loss?
The maximum length depends on the cable type and quality. RG59 cables are suitable for runs up to 50 feet, while RG6 can handle up to 100 feet or more with minimal loss. For longer runs, consider using a signal booster.
Can I use a custom RCA cable for video and audio?
Yes, RCA cables can transmit both audio and composite video signals. Ensure the cable and connectors are rated for the specific signal type (audio or video) to avoid degradation.
Is soldering necessary for making an RCA cable?
Soldering ensures a secure, low-resistance connection, but some RCA connectors are designed for crimp or compression fittings. Soldering is recommended for the best performance.
How do I know if my RCA cable is working properly?
Test the cable with a multimeter for continuity. Additionally, connect it to your devices and check for clear audio or video output without noise or distortion.
Can I repair a damaged RCA cable instead of making a new one?
Yes, if the damage is near the connector, you can cut the cable, strip the ends, and attach new RCA connectors following the same process outlined above.
Conclusion
Making a custom length RCA cable is a practical and cost-effective way to enhance your audio or video setup. By following the steps outlined, you can create a cable tailored to your exact needs, ensuring optimal performance and a clean installation. With the right tools, materials, and attention to detail, this DIY project is achievable for beginners and experienced hobbyists alike. Whether you’re connecting a stereo system or running coaxial cables from outside, this guide empowers you to take control of your home entertainment setup with confidence.
